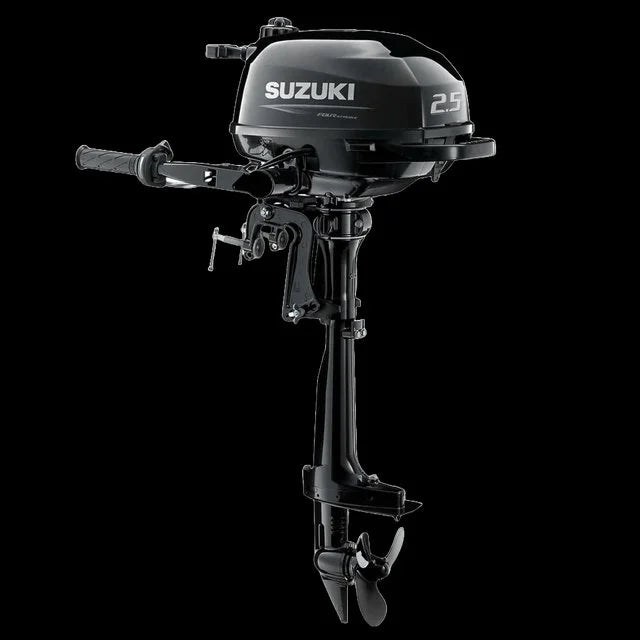

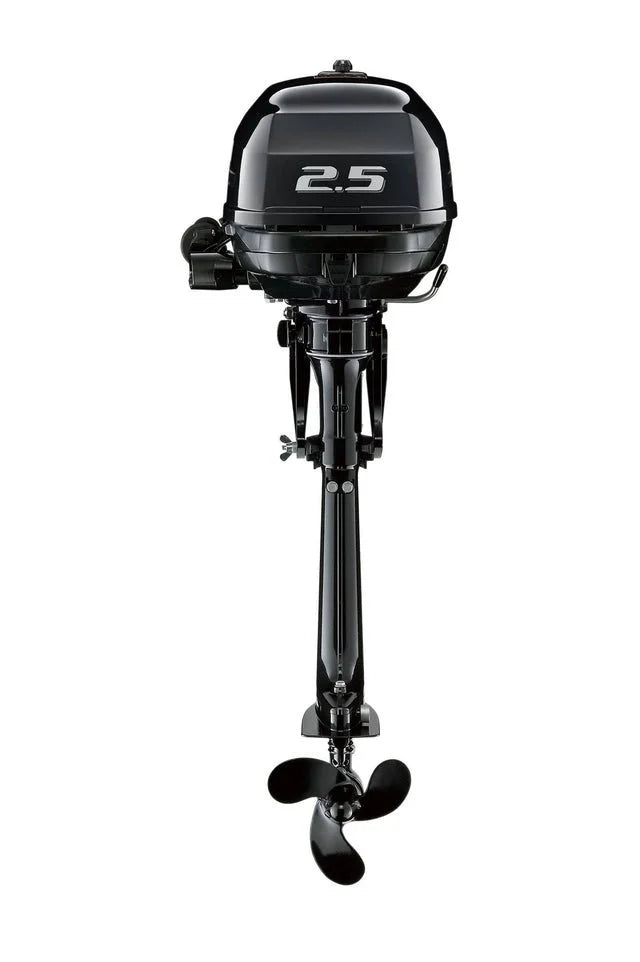

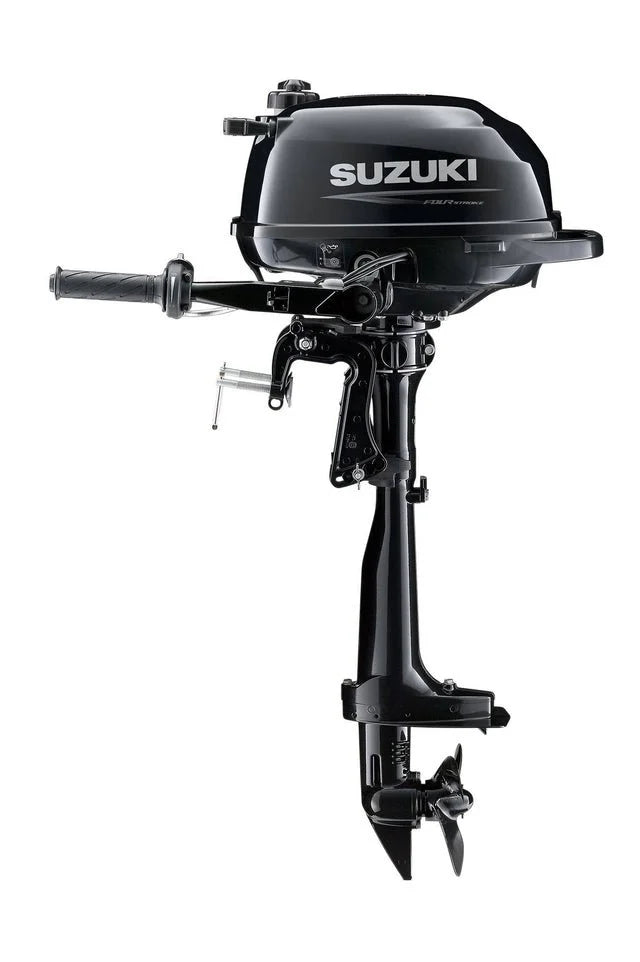

Suzuki 2.5 HP Outboard Motor – Model DF2.5S5

A featherweight champion in the world of outboard engines. At only 29 pounds, this makes it an optimal choice for small crafts, including square stern canoes, small tenders and inflatables, and even kayaks. The model comes equipped with a twist grip throttle for full-size control, forward-neutral gear shift, and a comprehensive 360° steering mechanism. For ease of transportation, it’s designed with integrated carrying handles. An integral fuel tank is included, making it a versatile choice for the 15 inch short shaft.

Specifications

• Model
  DF2.5 S5
• Weight
  29.0 lb
• Manufacturer
  Suzuki
• Country of Manufacture
  Thailand
• Horsepower
  2.5 HP
• Shaft Length
  15″ (Short)
• Steering
  Tiller
• Starting
  Manual
• Trim & Tilt
  Manual
• Fuel Delivery
  Carburetor
• Fuel Tank
  Internal
• Cylinder(s)
  1
• Displacement
  68 CC
• Bore and Stroke
  48 mm x 38 mm
• RPM Range
  5250
• Ignition System
  Digital Capacitor Discharge Ignition System
• Induction Scavenging
  OHV
• Valves per Cylinder
  2
• Fuel Type
  Unleaded Gasoline (87 octane)
• Oil Type
  SAE 10W-30 or SAE 10W-40
• Oil Capacity
  10
• Lubrication
  0
• Alternator
  0
• Cooling System
  Water-Cooled
• Saltwater Rated
  Yes
• Gear Ratio
  2.15:1
• Gear Shift
  Forward-Neutral w/ 360° Steering for Reverse
• Propeller
  3 blade aluminum 7.5″ Dia. x 5.5″ Pitch
• Internal Battery
  No

Features

• Compact and Lightweight Design
• Saltwater Rated
• Multi-Layer Corrosion Protection
• Quiet Below-the-Water Exhaust
• Fold-Down Tiller Handle
• Twist-Grip Throttle with Tensioner
• Large Carrying Handle
• Suzuki PEI Pointless Electronic Ignition
• 3-Star Ultra-Low Emission Rating
• Shallow Water Drive
• Over-Rev Limiter Protection
• Compression Reduction Starting System
• Steering Friction Tension Control
• Emergency Lanyard Stop Switch
• Built-in .26 Gal. Fuel Tank (45 min. @ WOT)
• 3-Blade Aluminum Propeller
• Suzuki’s Newest 5-Year Manufacturer Warranty
